Atelier Home 2022

A hypothetical home and atelier for a real artist couple, following their needs and desires. Designed as part of the forest of the plot, which is left as untouched as possible - foundations from natural stone, ground floor walls from rammed earth, top floor walls from vertical logs and roof trusses from timber, which scatter the light from the roof windows. The home and the atelier open to the heart of the home - the garden.

northern facade, entrance

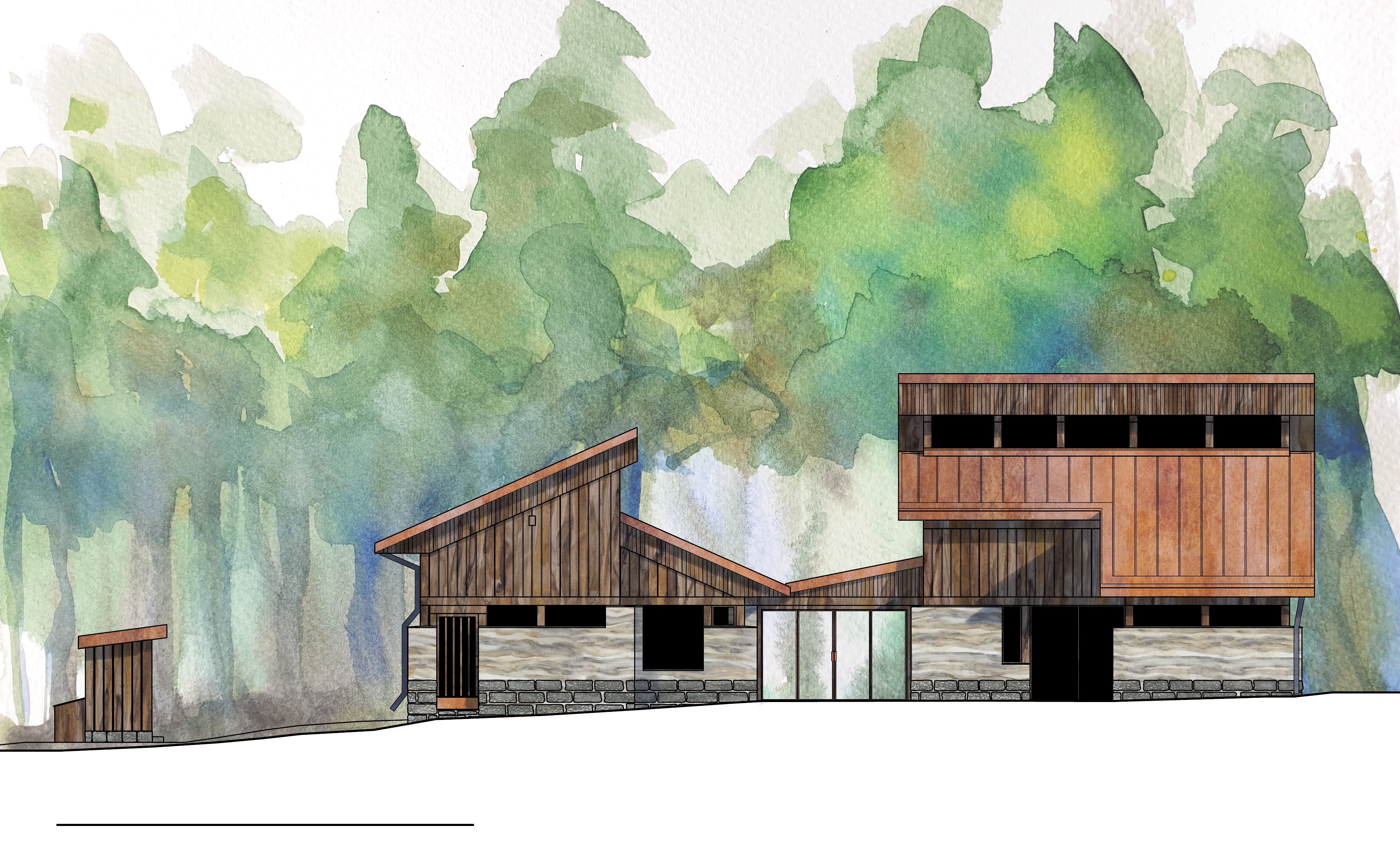

southern facade

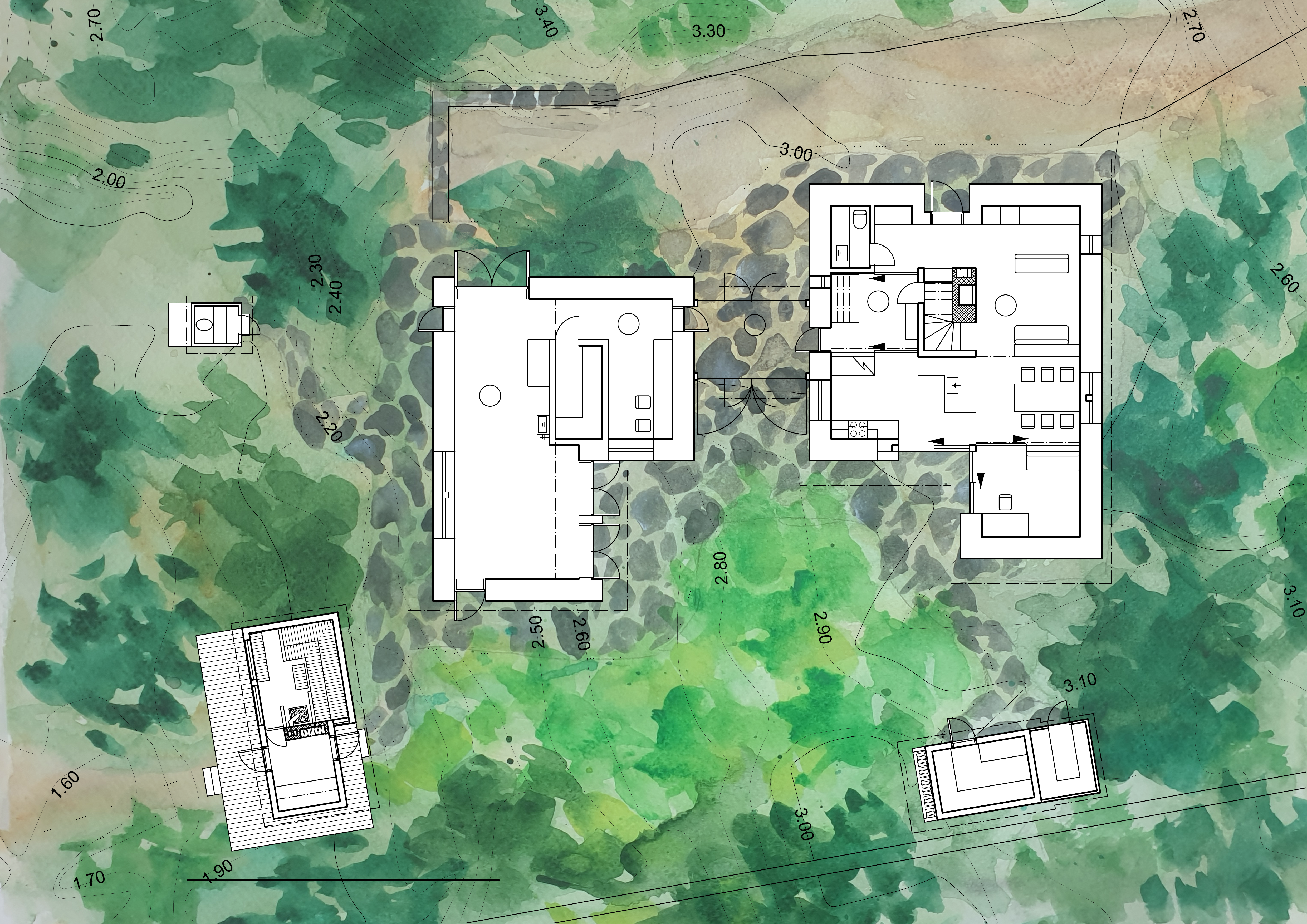

floor plan I

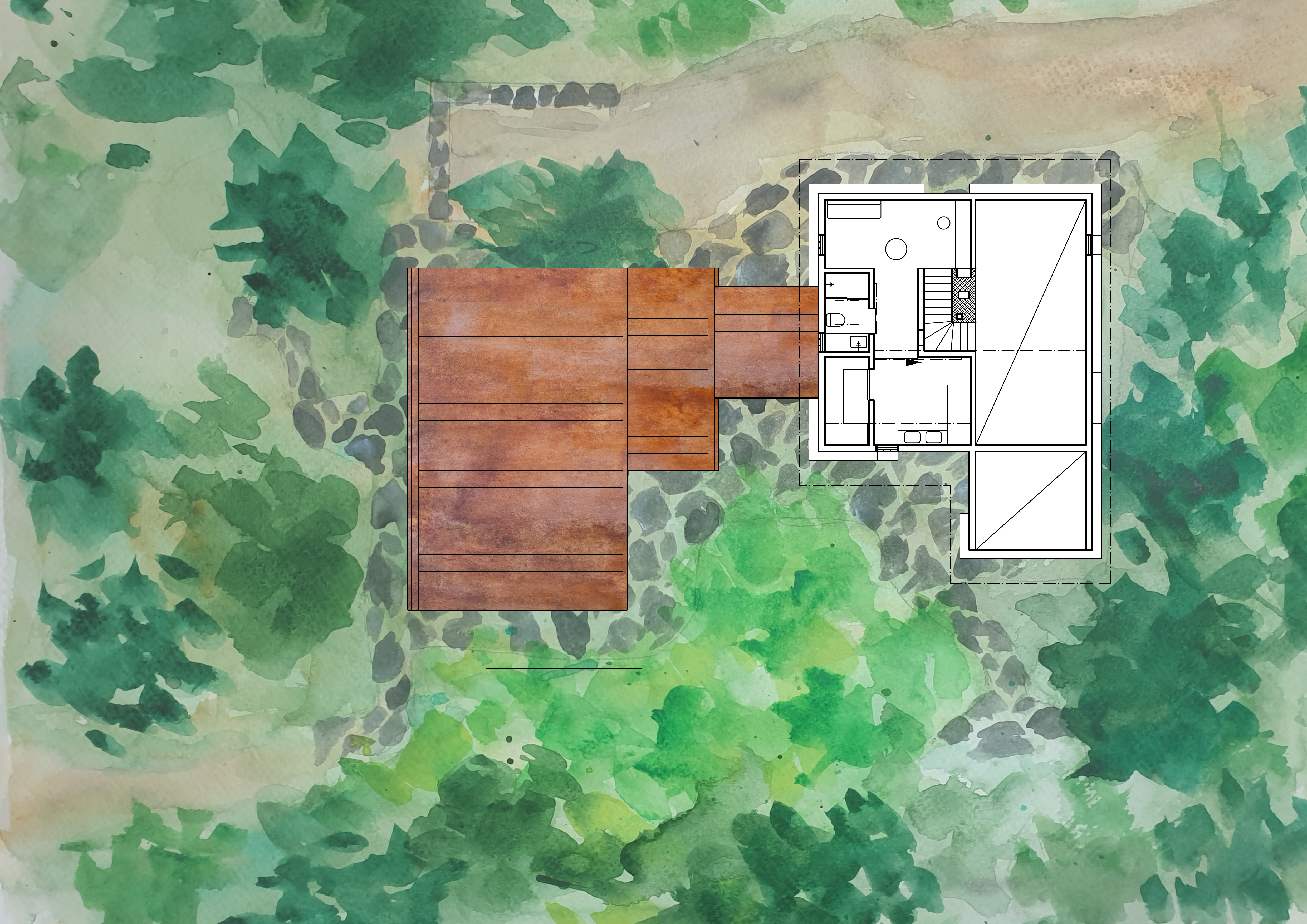

floor plan II

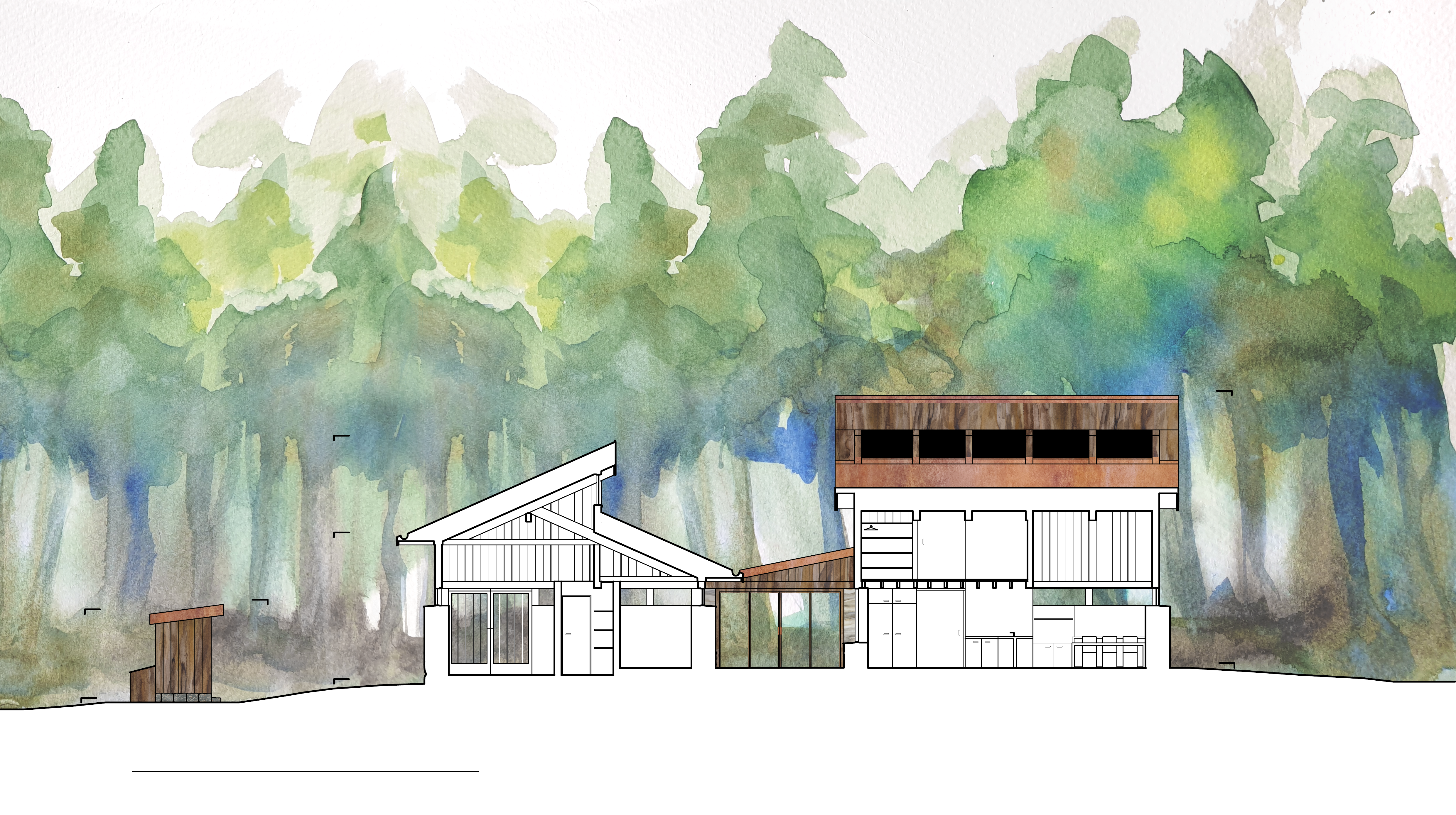

intersection A

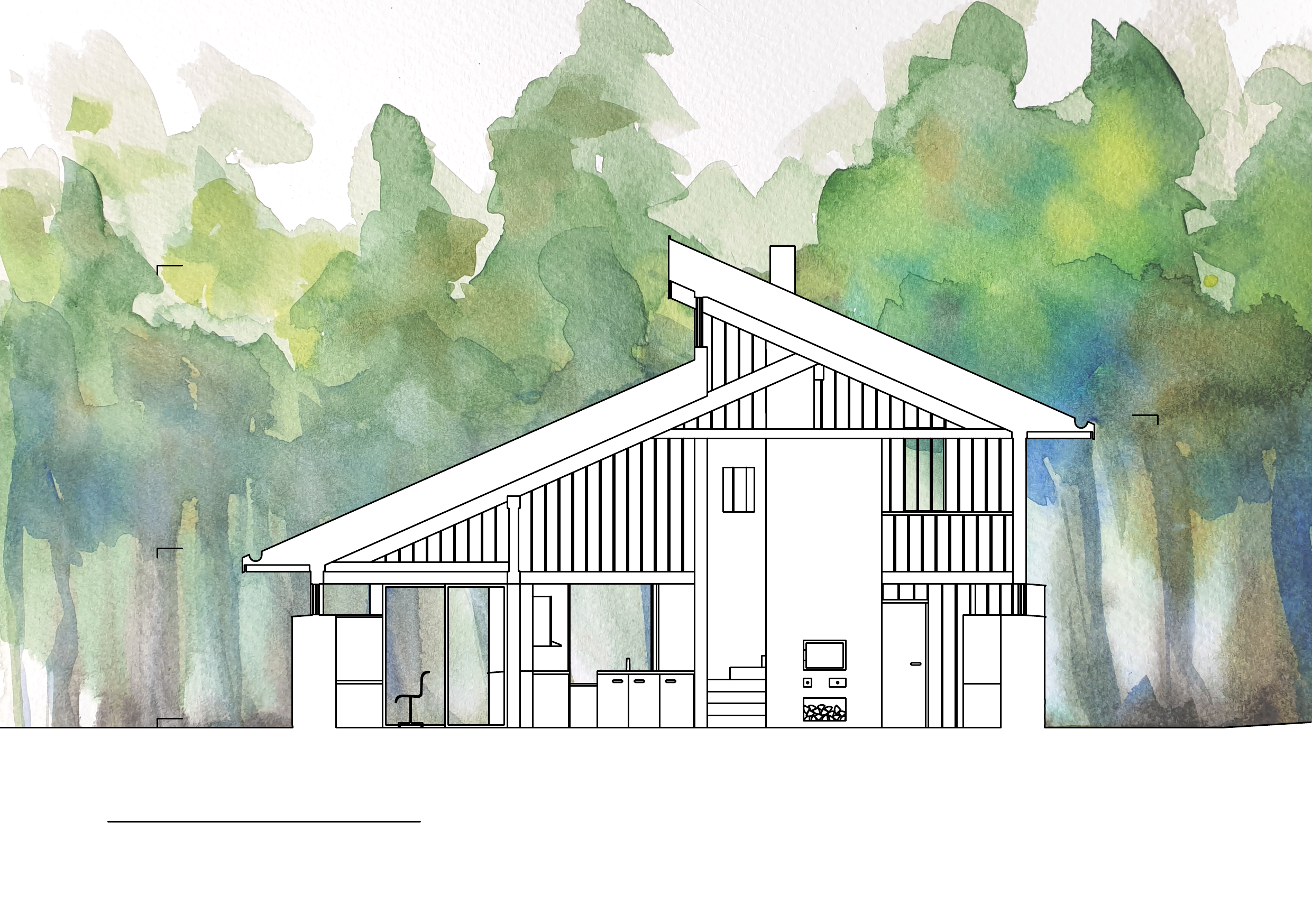

intersection B

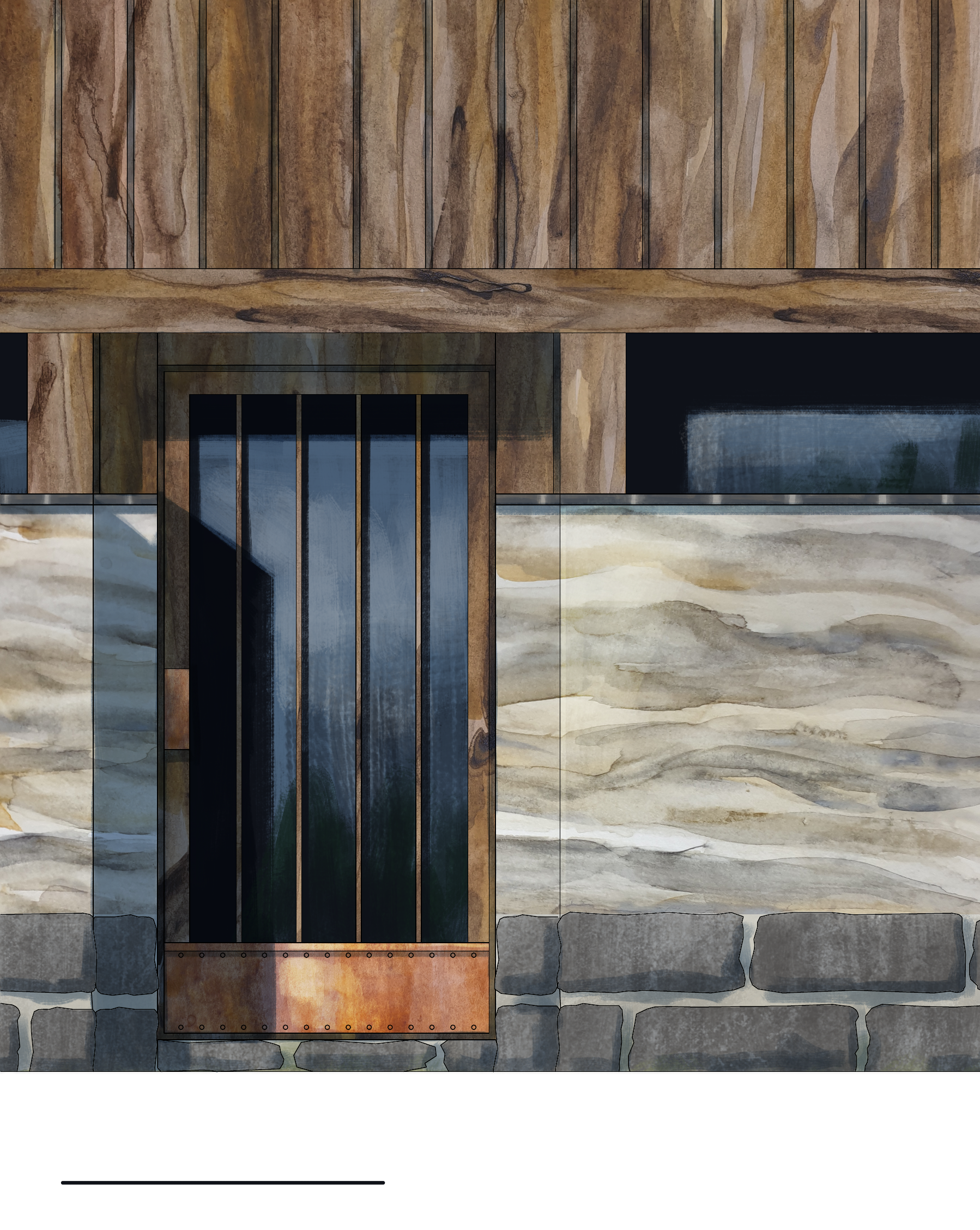

facade detail

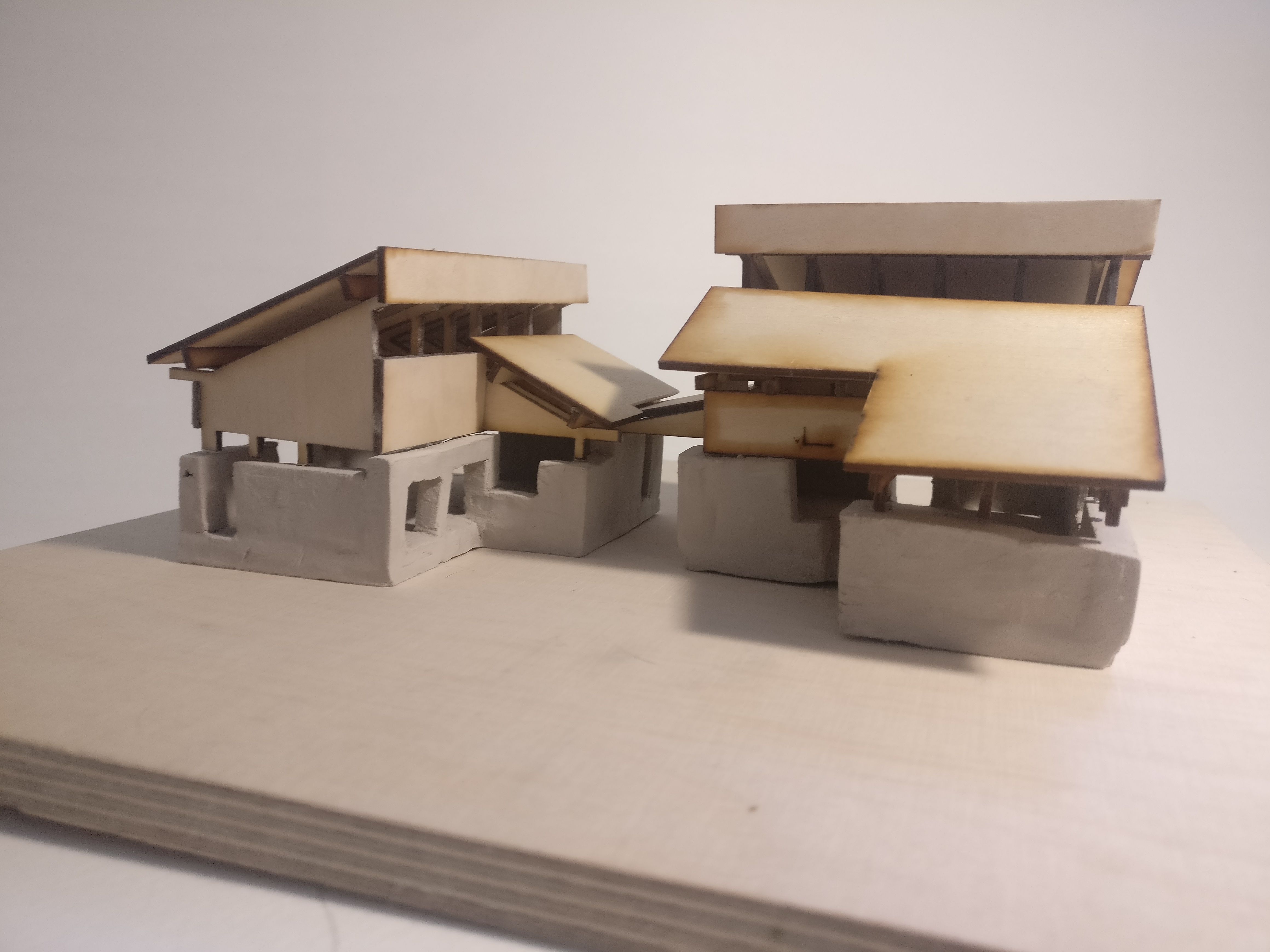

physical model, southern facade

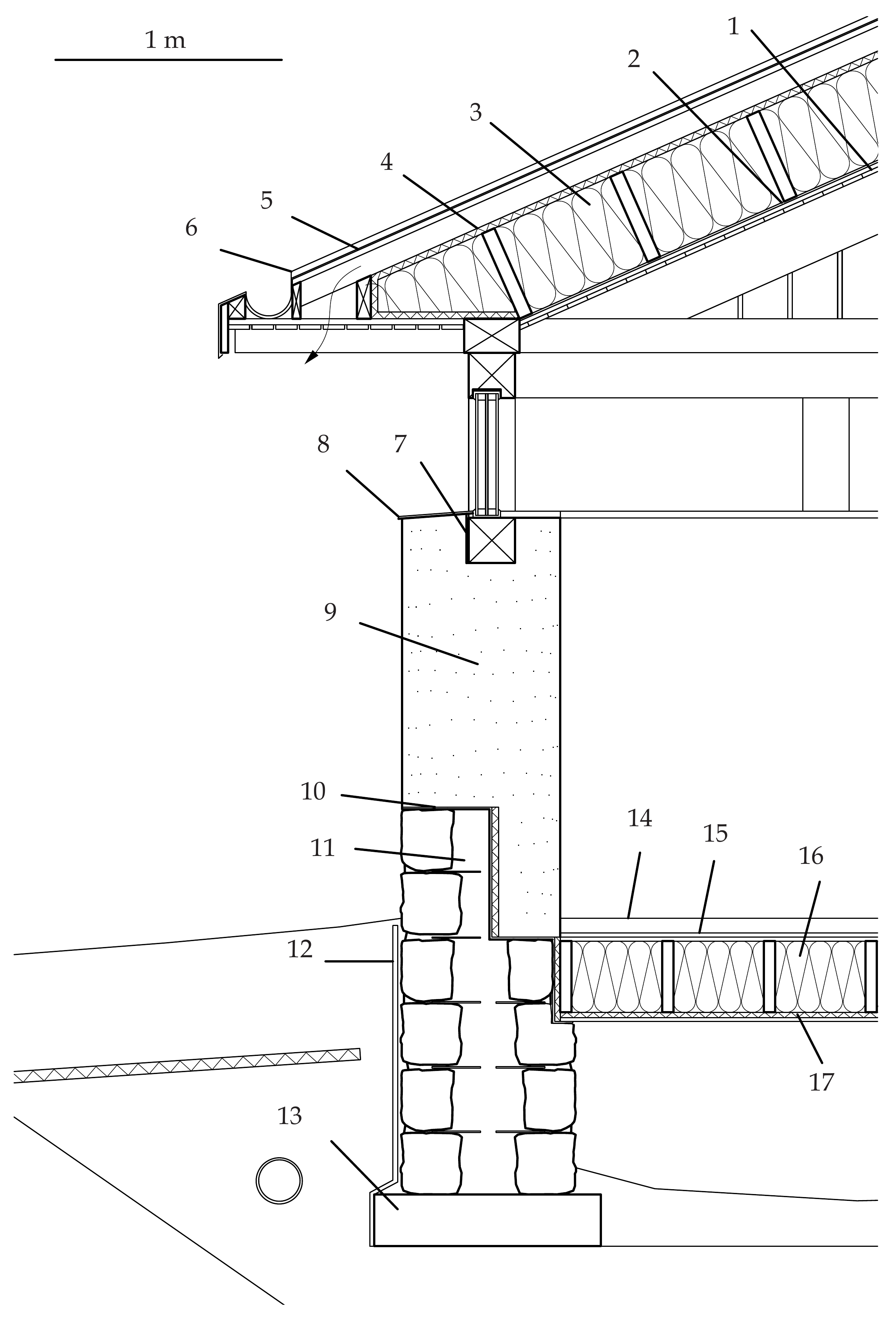

structural detail

1: spruce panel, 95mm x 20 mm

2: air seal

3: insulator, 400 mm

4: sheathing board, 25 mm

5: asphalt roll roofing

6: copper sheet

7: moisture barrier

8: slate slabs

9: rammed earth, 700 mm

10: moisture barrier

11: concrete plaster

12: moisture barrier

13: concrete foundation base

14: clay concrete, 65 mm

15: plywood, 18 mm (x2)

16: insulator, 315 mm

17: sheathing board, 25 mm
